Liebherr Rail-Road Excavator With Hydrostatic Drive Concept And Début For Articulated Dump Truck

Munich (Germany), 21 June 2022 – Liebherr has been successfully developing and manufacturing rail-road excavators for track construction since 1967. At Bauma Liebherr presents the A 922 Rail for the first time with a hydrostatic drive concept. The new, fully hydraulic quick coupling system LIKUFIX is also shown at the machine. Following the successful, digital product launch at the end of 2020, the articulated dump truck from Liebherr celebrates its début on the international trade fair stage at Bauma in Munich. The powerful, robust and efficient machine was developed for tough off-road applications.

Liebherr rail-road excavator A 922 Rail Litronic with hydrostatic drive concept and new, fully hydraulic quick coupling system LIKUFIX

At Bauma Liebherr presents the A 922 Rail Litronic for the first time with a hydrostatic drive concept and new LIKUFIX quick coupling system. The exhibit at the trade fair has an operating weight of around 23,000 kg, meets the requirements of exhaust emissions standard Stage V and mainly impresses thanks to high performance and reliability. With the 120 kW / 163 hp engine and the perfectly matched hydraulic system, the machine reaches high work speeds with the usual fluid movements of the attachments.

The innovative hydraulic concept consists of a Liebherr variable displacement double pump with a volume of 2×220 l/min and independent control circuits. High-performance, hydraulic attachments can thus be operated independently of the working and travel movements of the machine.

Huge importance is attached to safety in track construction. As an OEM manufacturer, Liebherr offers comprehensive safety systems from one source, which are perfectly adapted to the machine requirements. These include technologies such as the load moment limitation, the height and turning radius limitation, as well as the virtual wall.

The hydrostatic rail travel drive of the A 922 Rail is new: Two drive motors drive the rail-road excavator directly in the rail axis. This leads to lower tyre wear as there is no direct rail contact. In the trade fair configuration the machine is equipped with a standard gauge of 1435 mm. However, more track gauges will also be available in the future.

Another highlight of the A 922 Rail is the new quick coupling system LIKUFIX 33-9. With this quick coupling system attachments such as tamping units, mulchers with flaps or Liebherr stick extensions can be changed quickly, simply and safely from the operator’s cab thanks to the integration of the second high-pressure circuit, as well as the overflow oil line and lubrication line. The new LIKUFIX 33-9 is backwards compatible. This means that attachments which are equipped with the current quick coupling system LIKUFIX 33 can also be changed.

The A 922 Rail exhibit also gives visitors the opportunity to experience solutions in terms of intelligent handling of attachments. The new track-based attachment detection from Liebherr is presented live at the trade fair. In addition to displaying tool, application and location information, the solution also recognises the respective Liebherr attachment and automatically adapts it to the machine. The A 922 Rail at the trade fair is also equipped with a MIC 4.0 interface. This is a vendor-independent standard in communication and allows significantly simplified integration as well as control of various attachments in combination with Liebherr machines.

Début on international trade fair stage – TA 230 Litronic articulated dump truck

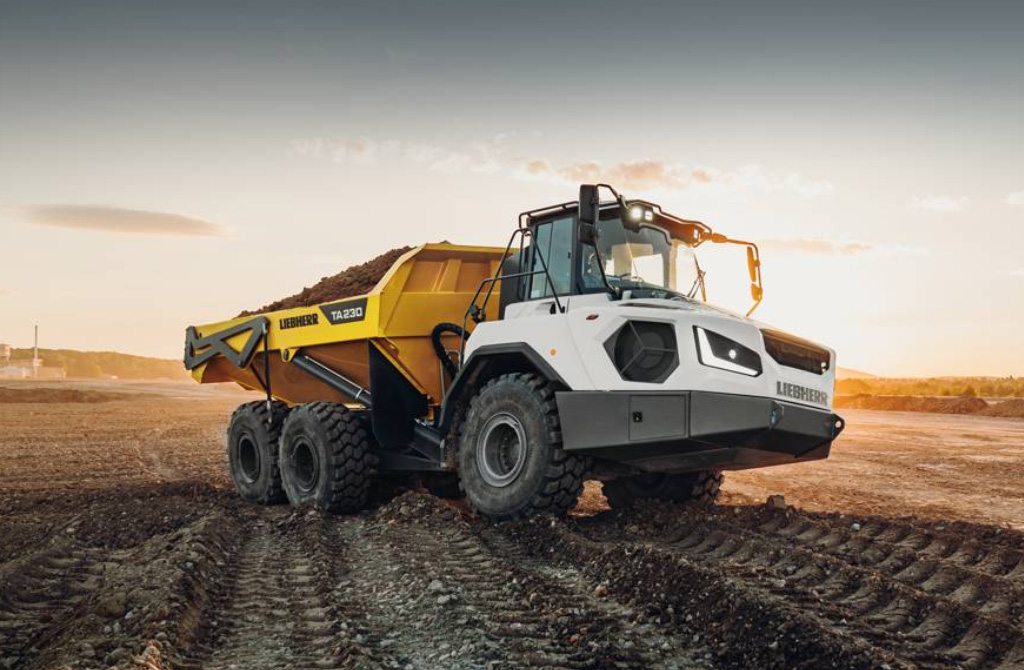

The TA 230 Litronic articulated dump truck is presented for the first time on an international trade fair stage. The machine was developed for tough off-road applications and is therefore perfect for transporting excavated materials and the mining industry. The machines are also used successfully for larger infrastructure projects and special applications such as tunnel construction. The powerful, robust and efficient Liebherr dump trucks deliver superb performance across all applications.

The exhibit at the trade fair has an operating weight of 24,600 kg. The 6-cylinder construction machine engine with 12 l capacity and 265 kW / 360 hp in combination with the exhaust gas aftertreatment system positioned behind the operator’s cab fulfils the requirements of exhaust emissions standard Stage V. The dump truck transports up to 28,000 kg of material in its large and robust trough. The trough volume can be increased with the tailgate. This also ensures that no material is lost during the journey. A big advantage of the TA 230 is shown in frequent changes of construction site: With wide tyres, tailgate and the side mirrors that can be folded in without the need for tools, the TA 230 has an overall width of under 3 metres and can therefore be transported quickly and without any costly special permit.

The Liebherr dump truck is characterised by its innovative vision and lighting concept. The spacious operator’s cab offers superb panoramic visibility of the driving, working and articulating area of the machine thanks to the excellent panoramic windows without any annoying struts and the short, inclined bonnet. The lighting concept with LED headlights also ensures a better view and thus also enhanced safety. LED dipped-beam headlamps with integrated high beam optimally illuminate the road and the extra powerful, optional LED headlights on the front of the cab illuminate the entire working area. The lighting at the rear of the trough and another light package at the mudguards light up the manoeuvring areas at night.
